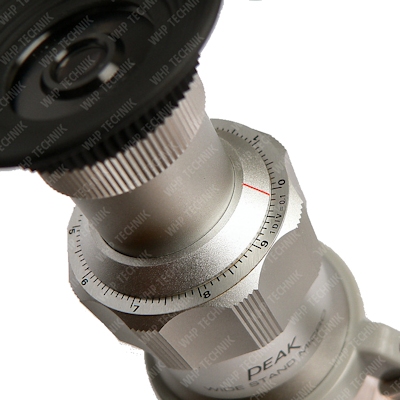

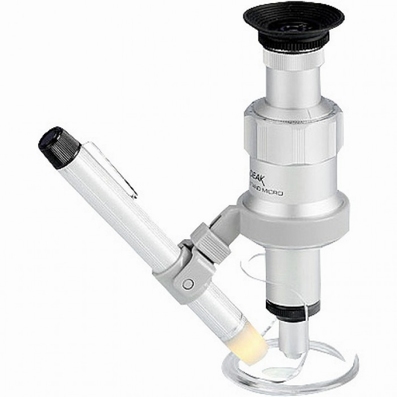

Stand microscope PEAK 2034, 150x

Stand microscope PEAK 2034, 150x
Stand microscope PEAK 2034, 150x
Stand microscope PEAK 2034, 150x
Stand microscope PEAK 2034, 150x
Stand microscope PEAK 2034, 150x
Stand microscope PEAK 2034, 150x
€ 390.00 *Prices are exclusive of VAT
Article code:  2034-150
Technical specification
  • magnification factor: 150 x
  • focusable: yes
  • scale focusable: yes
  • field of view: 0.96 mm
  • measuring length: 0.9 mm
  • scale: 0.005 mm
  • working distance: 9.2 mm
  • numerical aperture: 0.24
  • focal length: 7.3 mm
  • dimensions: 63 x 172 mm
  • weight: 241 grams

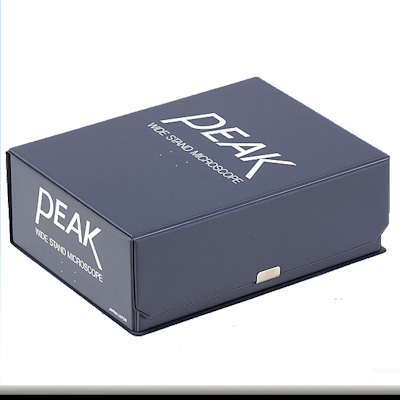

  • case Included

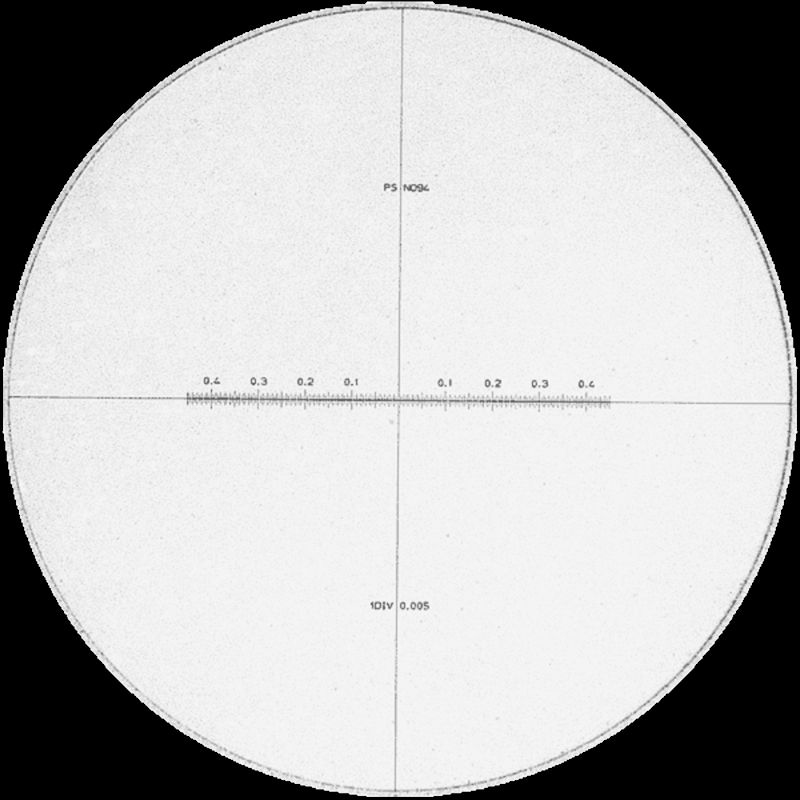

  • standard scale PS-84 included
  • ocular (removable): 10 x
  • objective (removable): 15 x
  • display mirror image in the horizontal direction
  • lighting LED pen light
  • transparent acrylic base

Accessories
  • tripod for microscope MKH
  • aluminium light holder LHM-A
  • aluminium carrying case K-2034-MST
  • USB 2.0 caméra with special adapter 1008-XS-ADP
  • software for displaying and saving images Metric BE
  • interchangeable objectives 15x, 20x, 30x
  • interchangeable oculars with graduations and scales
On order

Tripod with rollers for microscope 2034, 2054 & 2054-EIM

Tripod with rollers for microscope 2034, 2054 & 2054-EIM

€ 150.00
Aluminium light holder LHM-A for microscope 2034

Aluminium light holder LHM-A for microscope 2034

€ 150.00
