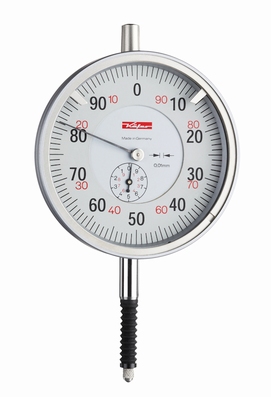

Mechanical dial gauge GM80SW, 10/1/0.01 mm, Ø80 mm

Waterproof & shockproof

Mechanical dial gauge GM80SW, 10/1/0.01 mm, Ø80 mm
€ 182.00 *Prices are exclusive of VAT
Article code:  10251
Shockproof: the high-class impact protection of the dial gauge results in an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The dial gauge is robust in operation. Its precision is maintained with practically no limitations.
Waterproof: IP67

Technical specifications
  • reading: 0.01 mm
  • range: 10 mm
  • range per pointer resolution: 1 mm
  • initial measuring force: 1.5 N
  • Ø bezel: 80 mm
  • graduation:
    * main pointer: 0-100 (100-0) in steps of 1
    * small pointer: 0-10 (10-0) in steps of 1
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • tolerance indicators
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP67
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0200.9.0016
  • weight: 308 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate


Factory certificate DIN 878 dial gauge, 0.1 mm, => 10 mm

Factory certificate DIN 878 dial gauge, 0.1 mm, => 10 mm
Option

€ 8.00
