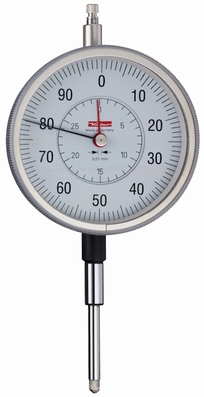

Mechanical dial gauge GM80/30T, 30/1/0.01 mm, Ø80 mm

Mechanical dial gauge GM80/30T, 30/1/0.01 mm, Ø80 mm
160.00 *Prices are exclusive of VAT
Article code10038
  • reading: 0.01 mm
  • range: 30 mm
  • range per pointer resolution: 1 mm
  • initial measuring force: 1 N
  • Ø bezel: 80 mm
  • graduation:
    * main pointer: 0-100 (100-0) in steps of 1
    * small pointer: 0-30 (30-0) in steps of 1
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • tolerance indicators
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0200.9.0016
  • weight: 373 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • back: magnetic, lug or special
  • fixing screw for the bezel
