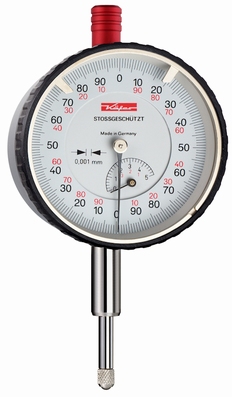

Mechanical dial gauge FM1000/5S, 5/0.2/0.001 mm, Ø58 mm

Shockproof

Mechanical dial gauge FM1000/5S, 5/0.2/0.001 mm, Ø58 mm
141.00 *Prices are exclusive of VAT
Article code10056
Shockproof: the high-class impact protection of the dial gauge results in an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The dial gauge is robust in operation. Its precision is maintained with practically no limitations.

  • reading: 0.001 mm
  • range: 5 mm
  • range per pointer resolution: 0.2 mm
  • initial measuring force: 1 N
  • Ø bezel: 58 mm
  • graduation:
    * main pointer: 0-100/0-100 (100-0/100-0) in steps of  1
    * small pointer: 0-5 in steps of 0.2
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0500.9.0001
  • weight: 180 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • back: magnetic, lug or special
  • fixing screw for the bezel
