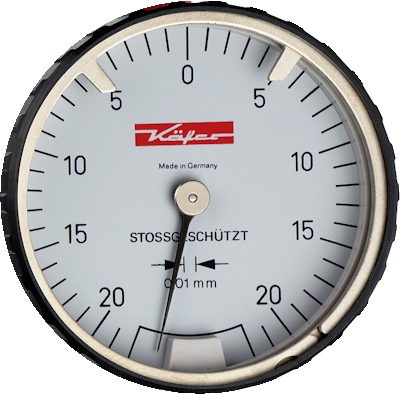

Mechanical dial gauge SI-45 R, 0.4/4.5/0.01 mm, Ø40 mm

Error free dial gauge & back plunger

Mechanical dial gauge SI-45 R, 0.4/4.5/0.01 mm, Ø40 mm
Mechanical dial gauge SI-45 R, 0.4/4.5/0.01 mm, Ø40 mm
116.00 *Prices are exclusive of VAT
Article code10123
Error free dial gauge: in order to avoid reading errors the measuring range of these dial gauges is limited to slightly less than one revolution of the pointer. Therefore a measurement can only be performed within the range of one revolution of the hand guaranteeing error free reading of the dial gauge.
With back plunger

  • reading: 0.01 mm
  • overtravel: 4.5 mm
  • range: 0.4 mm
  • graduation: 20~0~20
  • initial measuring force: 1 N
  • Ø bezel: 40 mm
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to manufacturing standard 0.0500.9.0006
  • weight: 172 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
