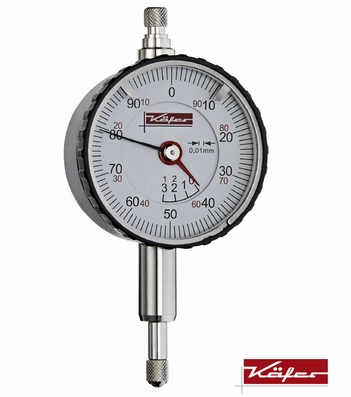

Mechanical dial gauge KM4T-100, 3/1/0.01 mm, Ø40 mm

Mechanical dial gauge KM4T-100, 3/1/0.01 mm, Ø40 mm
60.40 *Prices are exclusive of VAT
Article code10228
  • reading: 0.01 mm
  • range: 3 mm
  • range per pointer resolution: 1 mm
  • initial measuring force: 0.6 N
  • Ø bezel: 40 mm
  • graduation:
    * main pointer: 0-100 (100-0) in steps of 1
    * small pointer: 0-3 (3-0) in steps of 1
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to DIN 878
  • weight: 104 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • back: magnetic, lug or special
  • fixing screw for the bezel
  • lifting device
  • increased measuring force
  • reduced measuring force
  • extended stem
