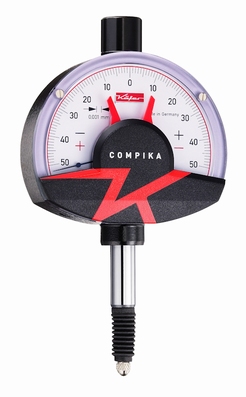

Dial gauge Compika 1001wa, ±0.05/3.0/0.001 mm, type A

IP53

Dial gauge Compika 1001wa, ±0.05/3.0/0.001 mm, type A
Dial gauge Compika 1001wa, ±0.05/3.0/0.001 mm, type A
Dial gauge Compika 1001wa, ±0.05/3.0/0.001 mm, type A
€ 189.00 *Prices are exclusive of VAT
Article code:  30014
  • reading: 0.001 mm
  • range: 0.1 mm
  • adjustable zero with screws on a free stroke of 3.0 mm
  • initial measuring force: 1 N
  • Ø bezel: 62 mm
  • graduation: 50-0-50
  • red adjustable tolerances markers
  • Ø stem: 8h6
  • metal casing
  • stem and spindle made of resistant stainless steel
  • protection category: IP53

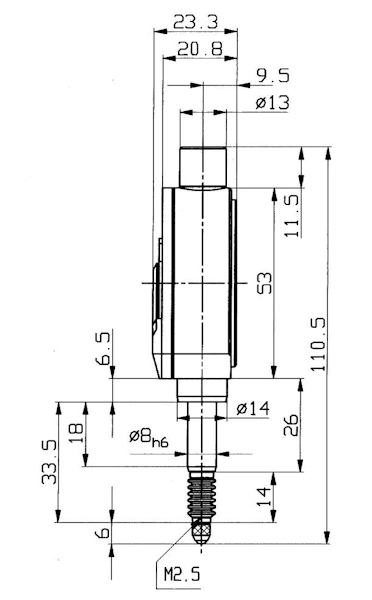

  • dimensions: according to DIN 879-1
  • accuracy: according to DIN 879-1
  • engraved with serial number
  • weight: 298 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate
  • special dial graduation
  • increased measuring force
  • reduced measuring force 0.5 N
  • extended stem 85 mm
  • two stems: top and bottom
