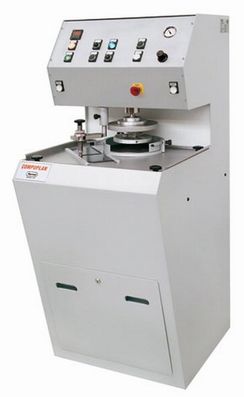

Automatic grinding machine Compuplan, Ø 356 mm

Automatic grinding machine Compuplan, Ø 356 mm
Price on request
Manufacturer:  REMET sas
Article code:  LSPLAN.01
The plane grinding machine COMPUPLAN is a powerful machine adapted for users with a high productions of sample
  • fast and effective plane grinding with a good flatness and a raised reproducibility, saving time and expenses on the following stages of preparation.
  • simple to use, no special formation necessary.
  • durable and solid construction, for a very long lifetime.
  • motorized arm with dresser for the fast maintenance of the grinding stone.
  • high safety.
  • COMPUPLAN uses a stone of Ø356mm for a dressing sector of 115mm and a motor of 3kWwith a maximum rotation sped of 1500 t/min.

Technical data
  • compression force on the sample holder: 200-700N.
  • dimension of the grinding stone: 358 X 46mm.
  • sector of dressing: 115 mm.
  • automatic stop at the end of the dressing cycle.
  • adjustable arm carries diamond for dressing the grinding stone.
  • maximum diameter of the sample holder: Ø200 mm.
  • recirculation cooling unit with pump and tank for the cooling liquid.
  • pump for the cooling liquid: 0,1 kw – poer supply: 380V.
  • compressed air supply: 6 bar, 20 litres/min
  • motor for the grinding stone: 3 kw.
  • maximum rotation speed of the grinding stone: 1500 t/mn.
  • magnetic brake for the fast braking of the grinding stone.
  • motor for the sample holder: 0.25Kw.
  • number of revolutions of the sample holder: 150 t/mn.
  • direction of rotation of the sample holder: 2 directions.
  • dimensions: 600x775x1440 Misters.
  • weight: 250kg.

Standard delivery
  • 2 grinding stones: 1 for ferrous matters, 1 for light alloys.
  • 1 diamond for dressing.
  • 1 sample holder for embedded samples Ø50mm
