Digital force gauge FC 50N/0,01N

Free Shipping B,L,F,NL,D

Digital force gauge FC 50N/0,01N
Digital force gauge FC 50N/0,01N
Digital force gauge FC 50N/0,01N
Digital force gauge FC 50N/0,01N
€ 415.00 353.00 *Prices are exclusive of VAT
Manufacturer SAUTER GmbH
Article codeFC 50
  • for push and pull forces
  • measuring range: 0~50 N
  • readout: 0.01 N
  • accuracy: ± 0.3% of the max of measuring range
  • data sampling rate: 1000 Hz
  • turnable LCD display, 160*128 matrix, with backlight
  • real time or Peak Hold Mode to observe transcients or capture peaks
  • metal housing for durable usage in harsh environmental conditions
  • capacity display: a bar lights up to show how much of the measuring range is still available
  • function to set limits: programmable high / low setpoints for go/no-go testing. Light and sound signal output
  • safety: if loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals
  • internal memory for up to 500 values
  • selectable: AUTO-OFF function or permanent operation
  • power supply: rechargeable batteries NiMh 3,6 Vdc - 450 mA + USB charger
  • selectable measuring units: N, kgf, ozf, lbf
  • data interface RS-232 (only for connection to the printer)
  • data interface USB for charger and communication with PC
  • 2xI/O for overlaod alarm and limits

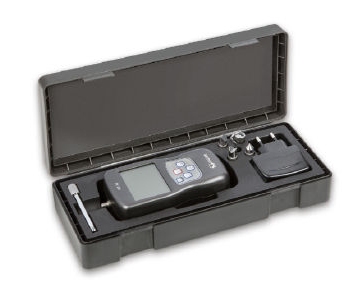

  • delivered in a hard carrying case

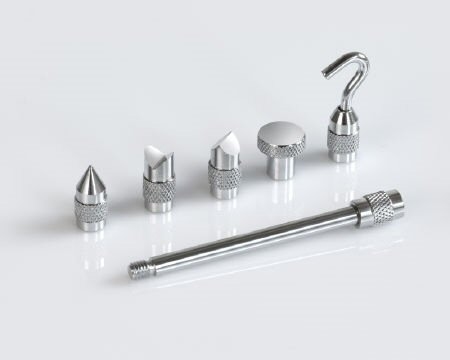

  • standard attachments: as shown below
  • warranty: 2 years
In stock
Option & accessories
  • calibration certificate DAkkS in traction
  • calibration certificate DAkkS in compression
  • calibration certificate DAkkS in traction & compression
  • printer
  • RS-232 / PC connecting cable, FC-A01
  • force-time evaluation software, data transmission rate 20 Hz, AFH FAST
  • force-distance evaluation software with graphic display of the measuring process, AFH FD
  • manual testing stand TVL, TVP, TVP-L or THP
  • motorized testing stand THM, TVM-N or TVO
  • clamping accessories
