Portable Rockwell Hardness Tester 50x50 mm

Portable Rockwell Hardness Tester 50x50 mm
Portable Rockwell Hardness Tester 50x50 mm
Portable Rockwell Hardness Tester 50x50 mm
Portable Rockwell Hardness Tester 50x50 mm
920.00 *Prices are exclusive of VAT
Article codePHR-2

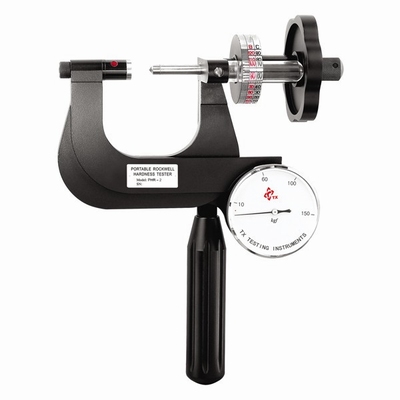

  • portable hardness tester for the measurement of Rockwell hardness according to standards EN ISO 6508 & ASTM E18
  • small and light, weight only 1.2 kg
  • as simple to use as a micrometer: the operator applies the preload using the crank, set the scale to zero, increases the load and returns to preload. He can read directly the hardness on the scale
  • usable on stand or site
  • precision meets the standards

Technical specifications
  • preload: 10 kg
  • main charges: 60/100/150 kg
  • resolution: 0.5 HR
  • swan neck openingsize: 50x50 mm
  • weight
    - hardness tester: 1.2 kg
    - support: 1.5 kg
  • dimensions: 390x280x160 mm
  • accuracy & repeatability: EN ISO 6508 & ASTM E18 standards

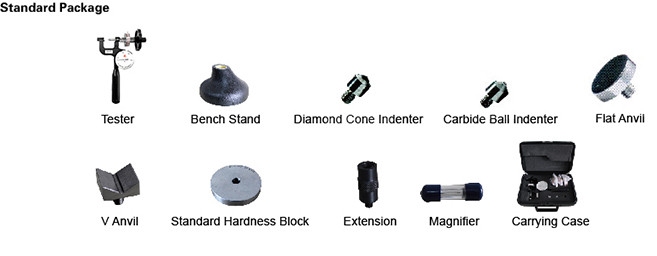

Scope of supply
  • durometer

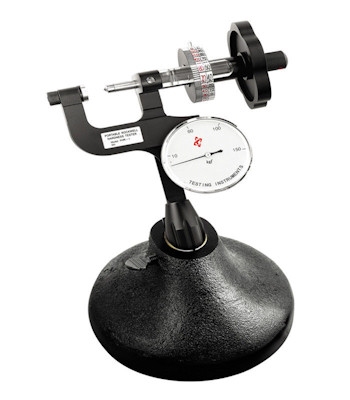

  • table stand
  • cone 120 ° diamond Indenter
  • penetrator ball 1/16 "
  • 3 blocks to calibration
  • flat anvil
  • V anvil
  • extension

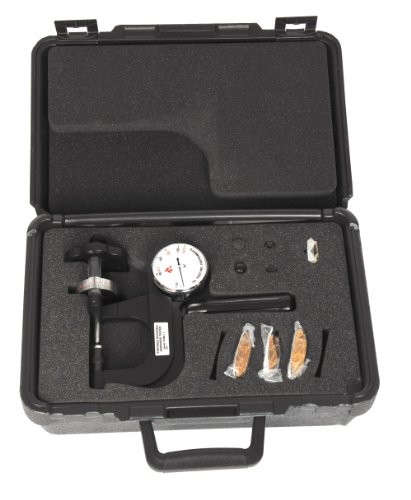

  • carrying case
  • certificate of calibration to factory with traceability

Accessories
  • penetrator diamond and ball carbide 1/16 ", 1/8" or steel 1/4 '', 1/2 "
  • calibration block
  • various anvils: small surface, convex, concave, for balls...
