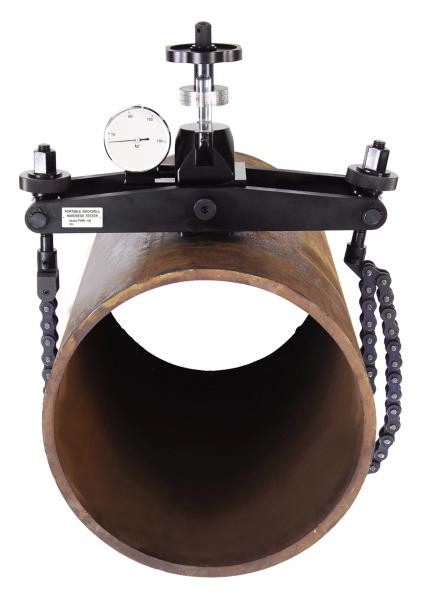

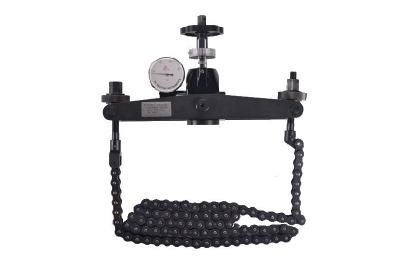

content="14/09/2022″/> Portable chain clamp Rockwell Hardness Tester 200~450 mm

Portable chain clamp Rockwell Hardness Tester 200~450 mm

Portable chain clamp Rockwell Hardness Tester 200~450 mm
Portable chain clamp Rockwell Hardness Tester 200~450 mm
1,613.00 *Prices are exclusive of VAT
Article codePHR-16
  • portable hardness tester for the measurement of Rockwell hardness according to standards EN ISO 6508 & ASTM E18
  • suitable for testing the hardness of large pipes and shafts accurately on-site
  • as simple to use as a micrometer: the operator applies the preload using the crank, set the scale to zero, increases the load and returns to preload. He can read directly the hardness on the scale
  • precision meets the standards

Technical specifications
  • preload: 10 kg
  • main charges: 60/100/150 kg
  • resolution: 0.5 HR
  • diameter of pieces Ø: 200~450 mm
  • weight
    - hardness tester: 4.8 kg
    - complete with carrying case: 13.0 kg
  • dimensions carrying case: 680x470x240 mm
  • accuracy & repeatability: EN ISO 6508 & ASTM E18 standards

Scope of supply
  • durometer
  • cone 120 ° diamond Indenter
  • penetrator ball 1/16 "
  • wrench
  • 3 blocks to calibration
  • flat anvil
  • V anvil
  • carrying case
  • certificate of calibration to factory with traceability

Accessories
  • penetrator diamond and ball carbide 1/16 ", 1/8" or steel 1/4 '', 1/2 "
  • calibration block
  • various anvils: small surface, convex, concave, for balls...
