Impact sonde LEEB type D+15 (HLD+15)

Impact sonde LEEB type D+15 (HLD+15)
€ 814.00 778.00 *Prices are exclusive of VAT
Article codeTH/0130

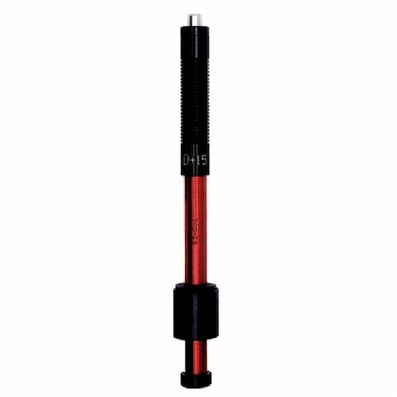

Impact device LEEB with particularly slim front section for TH-110 or TH-160
- for hardness measurements in grooves and recessed surfaces
- impact energy: 11 Nmm
- mass of impact body: 7.8 g
- test tip: Ø 3 mm, carbide, 1600 HV
- body: Øxl 20x162 mm, 80 g
- max. hardness of the test specimen: 940 HV
- surface preparation: Ra max 2 µm
- weight of the piece: 5 kg, 2 kg on a stable support, 0.1 kg with coupling
- min. thickness of sample with coupling paste: 3 mm
- min. layer thickness: 0.8 mm
- precision: ± 12 HLD+15
- delivered with cable and lemo connector

Measuring range

Materials
HV
HB
HRC
HRB
HSD
Steel
80~937
80~638
19,3~67,9
-
33,3~99,3
Alloy tool steel
80~935
-
19,9~68,2
-
-
Stainless steel
-
-
-
-
-
Grey cast iron
-
-
-
-
-
Ductile iron
-
-
-
-
-
Cast aluminium
-
-
-
-
-
Brass
-
-
-
-
-
Bronze
-
-
-
-
-
Copper
-
-
-
-
