Reference bloc steel 650 HBW10/3000 with certification EPL

Reference bloc steel 650 HBW10/3000 with certification EPL
€ 567.00 *Prices are exclusive of VAT
Manufacturer:  Euro Products Ltd
Article code:  650 HBW10/3000
  • in accordance with EN ISO 6506-3:2015 and ASTM E10-18
  • the nominal value of the delivered block may differ slightly from the reference value of the ordered block
  • made of steel with mirror-polished measuring surface and finely ground surface
  • side marking: supplier identifier, serial no. with calibration year integrated in no., nominal block hardness with maximum permissible hardness tester measurement error according to ASTM standard
  • marking on the box: identifier of the manufacturer with UKKAS accreditation number, serial number of the block, date of calibration, certificate number, nominal value, type of certificate (ISO or UKAS)

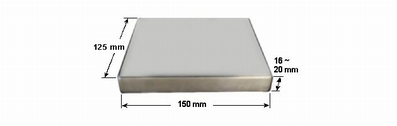

  • block dimensions ((WxDxH)): 150x125x16 mm
  • dimensions of the box (WxDxH): 280x230x50 mm
  • weight: 1.4 kg
  • delivered in a plastic case with protective foam and anti-oxidation paper + ISO certificate (validity period of the certificate 5 years)

Options
  • calibration certificate UKAS
  • marked measuring surface with a hexagonal grid with cell size adapted to respect the distance between adjacent impressions

Option

UKAS calibration certificate - Brinell

UKAS calibration certificate - Brinell

€ 18.00
Grid pattern for hardness block

Grid pattern for hardness block

€ 53.00
